Services

Machining, fabrication and industrial coating from a single supplier

We perform nearly every manufacturing step in-house, with full control over quality and lead time.

01 · CNC machining

Precision CNC machining

3 and 4-axis CNC lathes and machining centers for industrial and subsea components in carbon steel, stainless steel, duplex and super duplex, aluminum alloys and polymers.

  • 4 CNC lathes, up to Ø1,100 mm swing over bed and 2,000 mm between centers
  • 5 machining centers, including 2 ROMI D-1000 4-axis machines
  • Table up to 1,500 × 800 mm on the Travis 1500-SL
  • Wire EDM for parts up to 1,600 × 1,100 × 500 mm
  • CAM programming
Quote machining
Dimensional inspection with micrometers of threaded parts, CNC lathe in the background
02 · Fabrication

Heavy fabrication and offshore structures

Subsea intervention tools, ROV skid repair, launch frames, manifolds, piping, loadout ramps and offshore structures.

  • ABNT NBR ISO 9001:2015 quality system and Petrobras CRC registration
  • WPS qualified per AWS D1.1, D1.2 and D1.6
  • TIG and MIG welding of aluminum and 304 / 316L stainless steel
  • CNC plasma and oxy-fuel cutting on a 12,000 × 3,000 mm table
  • Radial drill for holes up to Ø60 mm
Quote fabrication

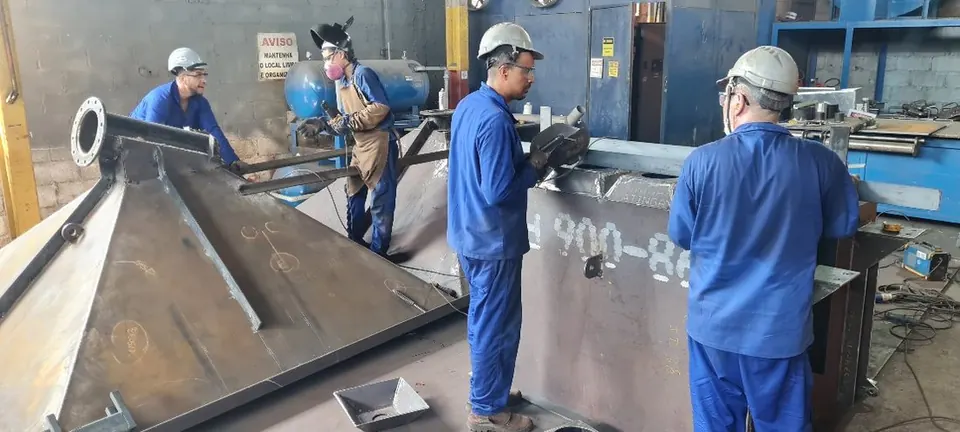

Fabrication shop with large structures being assembled
03 · Surface treatment

Blasting and industrial coating

Surface preparation by abrasive blasting and multi-coat systems for marine environments, per Petrobras standard N‑2680.

  • Cleanliness grade Sa 2½
  • Anti-corrosion treatment
  • Epoxy and polyurethane finishes
  • Compliance with Petrobras N‑2680
Quote coating
Flange with industrial coating applied
How we work

From drawing to delivery, fully traceable

A clear path for your order, with quality recorded at every step.

  1. 01

    Technical quote

    We review drawing, material and lead time and send a detailed proposal.

  2. 02

    Engineering

    CAM programming, welding procedures and production planning.

  3. 03

    Manufacturing

    Cutting, machining, welding, assembly, blasting and coating in our facilities.

  4. 04

    Inspection

    Dimensional control and records under our ISO 9001 quality system.

  5. 05

    Documented delivery

    A data book and certificates travel with the equipment to the client.

Machine shop

Equipment to do almost everything in-house

Main equipment at our facilities.

CNC lathes

  • Clever L4480Ø1,100 mm swing over bed · 2,000 mm between centers · Ø1,400 mm in the gap · Siemens 802D
  • Travis TR-2Ø630 mm swing over bed · 1,000 mm between centers
  • ROMI Centur 30DØ430 mm · 1,000 mm between centers · Fagor 8037
  • Travis TR-1 XPCNC lathe

Machining centers

  • ROMI D-1000 (2 units, 4 axes)1,220 × 560 mm table · ISO 40 taper · up to 15,000 rpm · 30/48 tools · Fanuc 0i-MF Plus
  • Travis 1500-SL1,500 × 800 mm · Fagor 8060 / Fanuc 0i-MF Plus
  • Travis M800-SL800 × 480 mm
  • ROMI Discovery 760760 × 460 mm · Siemens 802D

Cutting, drilling and engraving

  • CNC plasma and oxy-fuel cutting table12,000 × 3,000 mm
  • AR100/MA wire EDMParts up to 1,600 × 1,100 × 500 mm
  • FRN-60 × 1600 radial drillDrilling up to Ø60 mm
  • WS-14090 laser engraver1,400 × 900 mm work area
FAQ

Common questions from our buyers

Is Usinando a Petrobras supplier?

We are registered in the Petrobras supplier registry (CRC) and our quality management system is certified by ABNT to NBR ISO 9001:2015 (certificate No. 23.064/25, valid until Sep 16, 2028). The scope covers precision machining, fabrication, piping, assembly, blasting and coating. View the certificate.

Do you only machine, or also fabricate and coat?

All three. Cutting, machining, welding, assembly, blasting and coating happen in our facilities, which shortens lead times and simplifies purchasing: one supplier, one point of responsibility.

Which welding procedures do you follow?

Our WPS are qualified per AWS D1.1 (structural steel), D1.2 (aluminum) and D1.6 (stainless steel), with qualified welders. We perform TIG and MIG welding of aluminum and 304 / 316L stainless steel.

Where are your facilities?

Headquarters is in Itaboraí, Rio de Janeiro state (Rua da Penetração, Jardim Marambaia, ZIP 24858-508). The branch is in Rio das Ostras (Rua Químico de Petróleo, Zen, ZIP 28899-008), close to the Campos Basin offshore hubs.

How do I request a quote?

Use the form on the contact page, e-mail comercial@usinando.com.br or message us on WhatsApp +55 32 9987-8619. If you have technical drawings, send them by e-mail in PDF, DWG or STEP: it speeds up the reply.

Need a custom solution?

Send us the drawing or describe the problem. Our technical team will put together the best solution.
